Ceiling to Counter - French Bistro

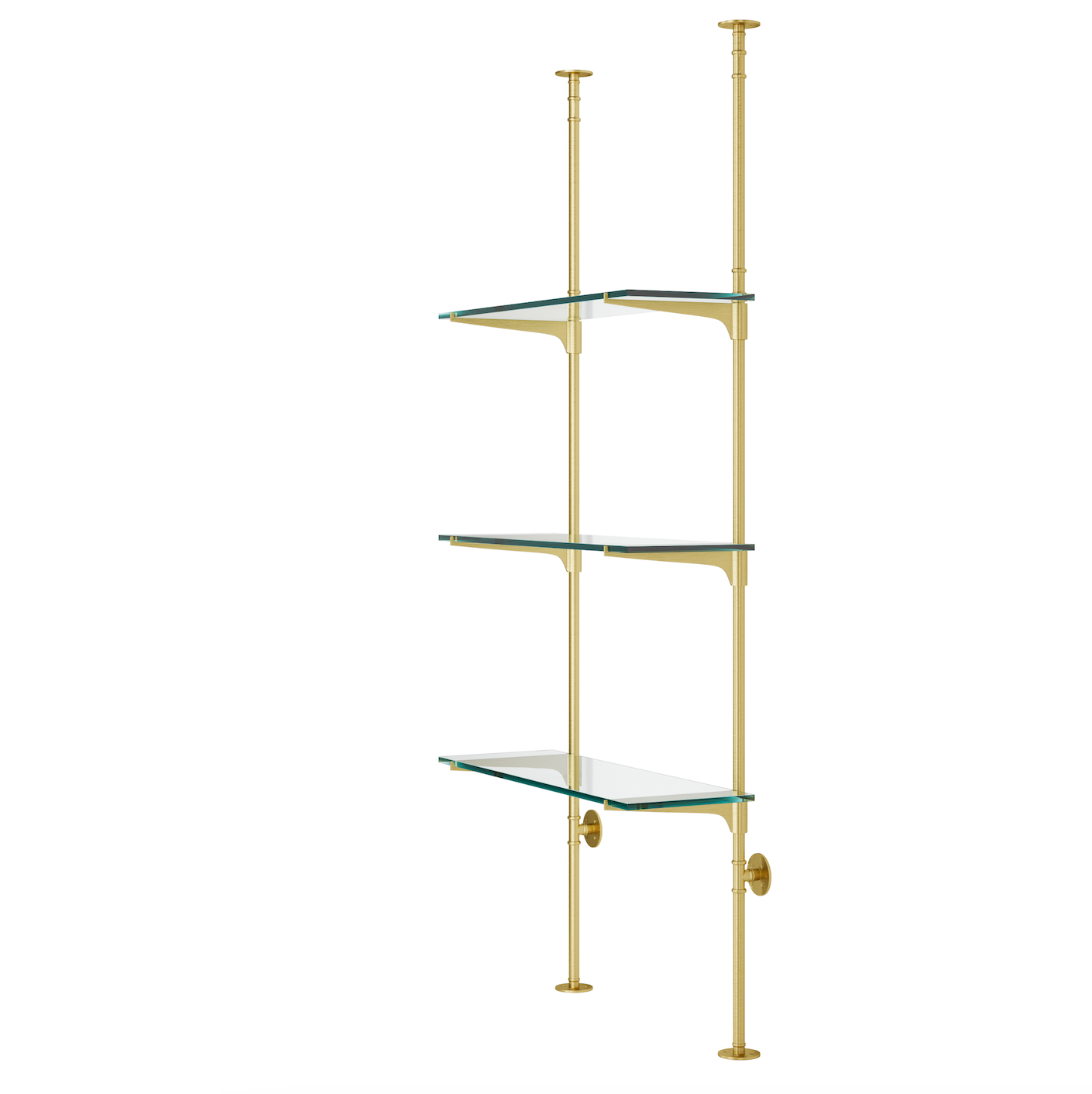

General frame structure
The unit rests on the counter and is mounted to ceiling on the top.

Identifying your parts
Use these reference photos with the install instructions to make install a breeze! Note not all units contain every part labeled - refer to the card in your package for your custom parts list.

Instructions

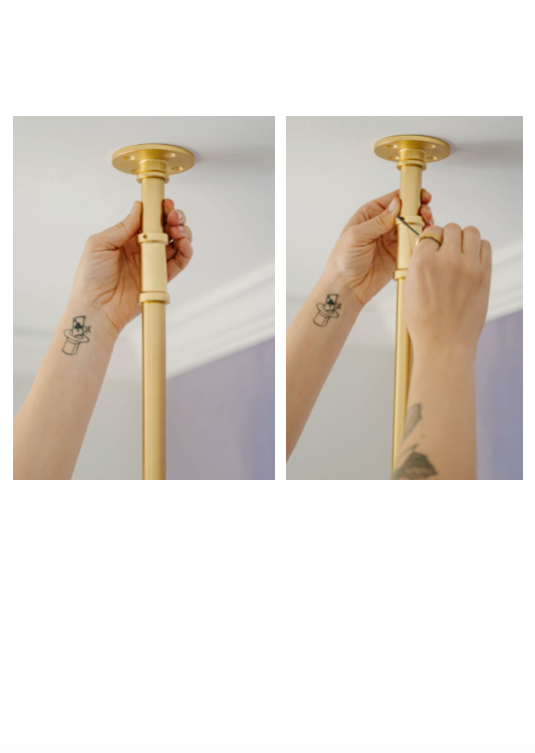

1. Fully assemble each rail in your design. Use the card included in your package to determine which rails go at each level. Your top layer should be at least two rails joined together with a coupling (like the photo on the right).

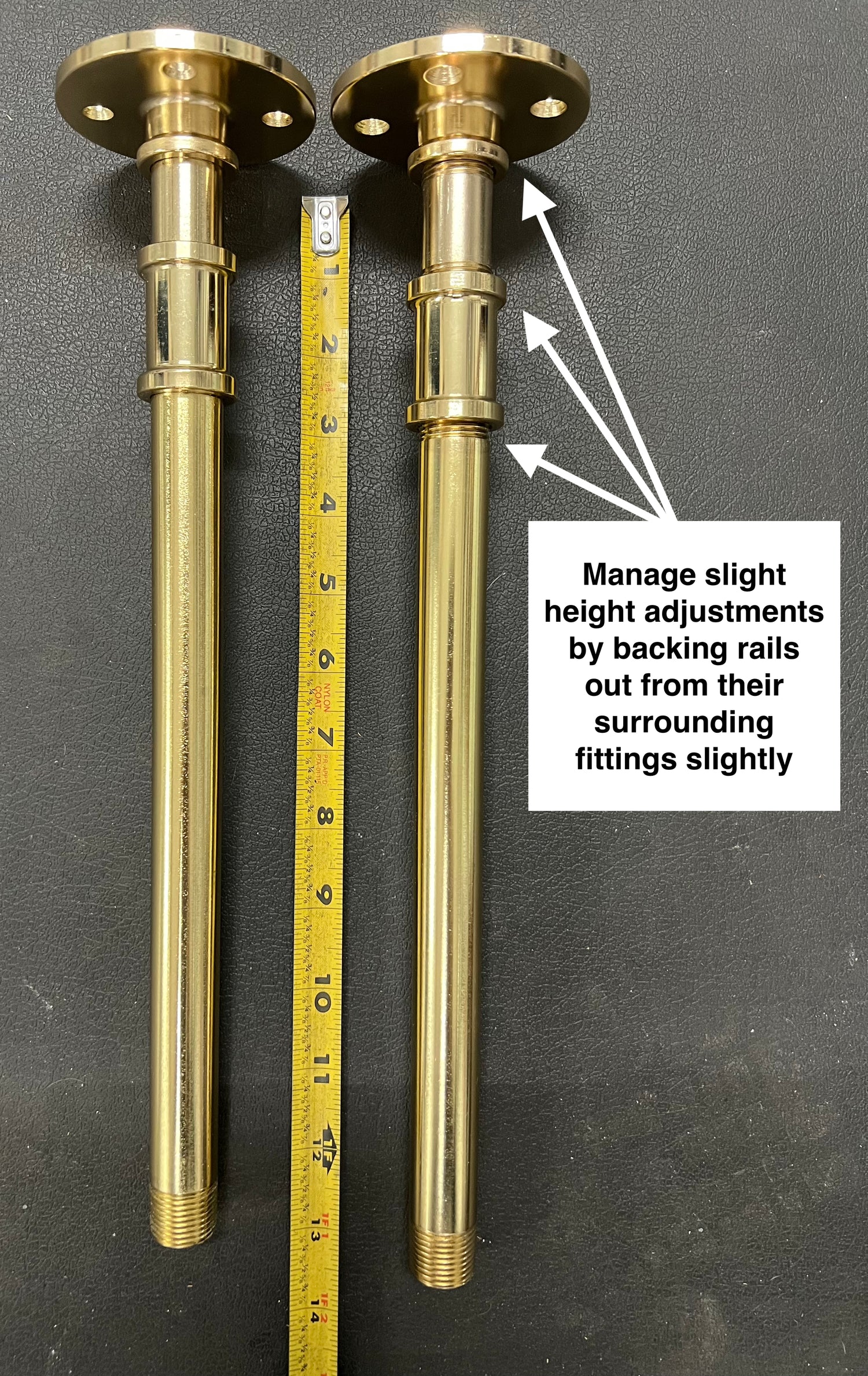

2. Hold the rail in place where you intend to secure it. We recommend at least 2" of glass overhang on the edge of each shelf. Note you may need to back the top rail out of the surrounding fittings by a couple of threads to achieve the perfect fit (see photo). Your package will also include wooden discs should you require slight shimming.
3. Using a level, ensure the rail is straight vertically, then secure with 1 screw through the ceiling mount only.
4. Repeat steps for all rails in your design.
5. Use a level to ensure cantilever arms are in line horizontally. Once leveled, secure each rail with remaining screws.

Next Steps
6. Place your glass on the cantilever arms, add some booze, and enjoy!
