Ceiling to Wall - French Bistro

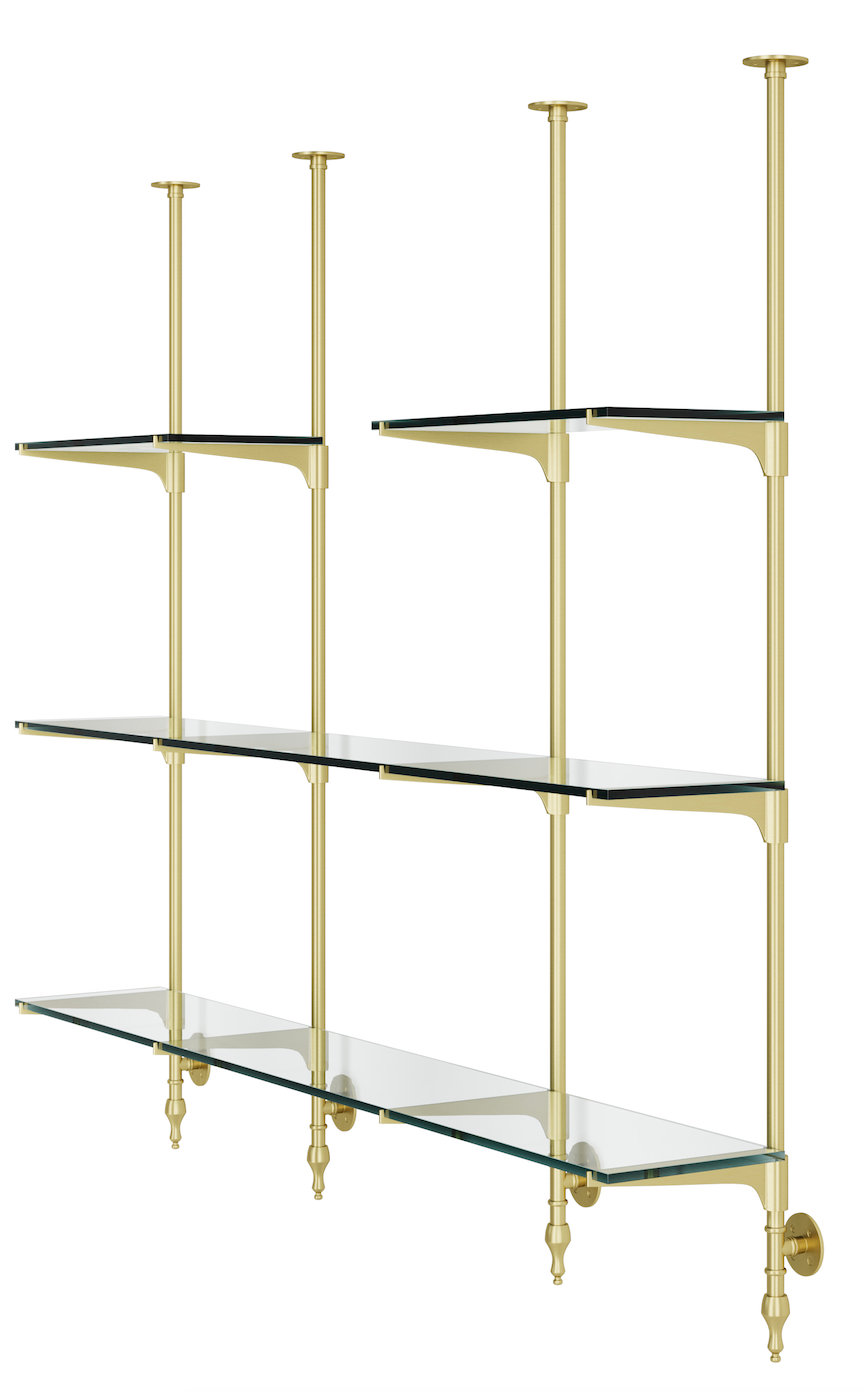

General frame structure
This structure is mounted to the ceiling on the top and the wall under the bottom shelf. Arms face outward so rails are closer to the wall.
The ceiling will carry the load, so it's important to ensure that the unit is reinforced / secured to studs or wood.

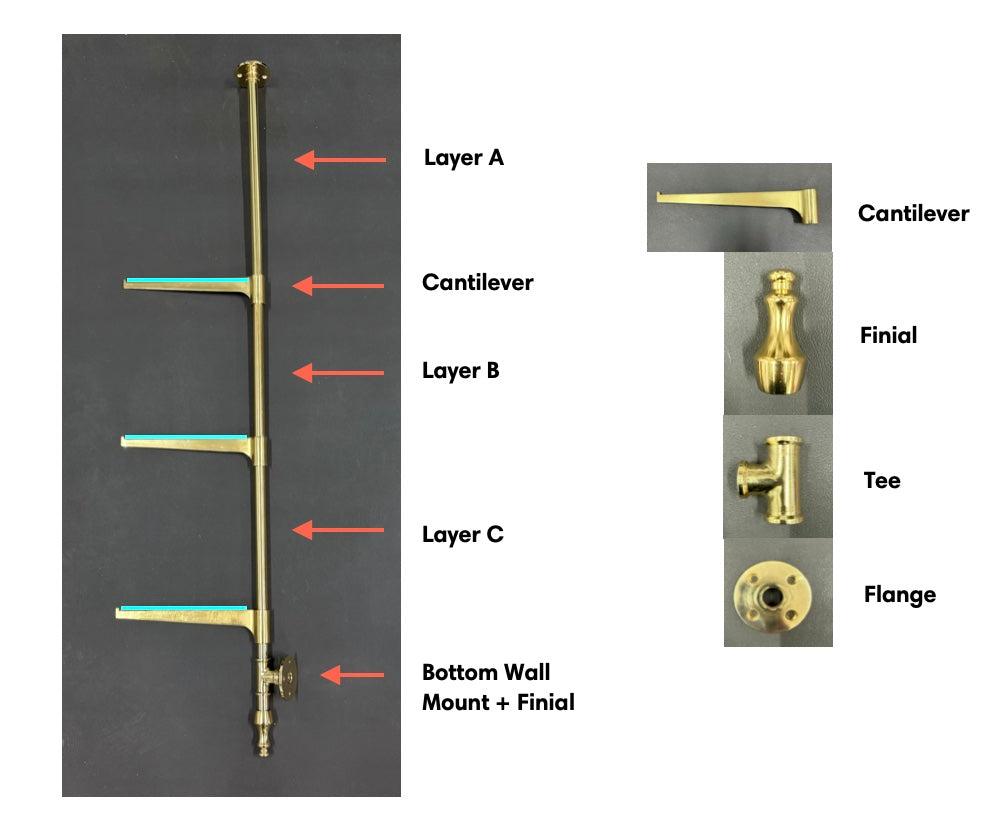

Identifying your parts
Use these reference photos with the install instructions to make install a breeze!
Instructions
1. Fully assemble each rail in your design. Use the card included in your package to determine which rails go at each level.

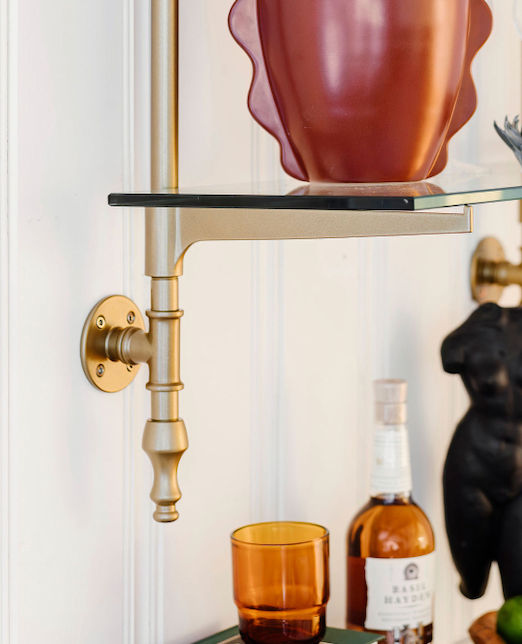

2. The assembly should finish with your bottom wall mount and (optional) finial like this photo ----->
3. Hold the rail in place against the ceiling and wall where you intend to secure it. We recommend at least 2" of glass overhang on the edge of each shelf. Using a level, ensure the rail is straight vertically, then secure with 1 screw through the ceiling and wall mounts.
4. Repeat step 3 for all rails in your design. Use a level to ensure cantilever arms are in line horizontally. Once leveled, secure each rail with remaining screws.
Next Steps
5. Place your glass on the cantilever arms, add some booze, and enjoy!
